100TECH Boat Fuel Level Gauge & Sending Unit Kit - 13" 240-33 Ohms Marine Fuel Sensor for Boats, Cars, Trucks | Accurate Fuel Monitoring for Marine & Vehicle Applications

Specification of 100TECH Fuel Level Gauge Product description 100TECH Fuel Level Gauge -Fixing dimension: 52mm(2 1/16 ") -Indicating Range: E-1/2-F) -Signal:240-33 ohm) -Working Voltage: 9-32V(12V/24V) -Backlight: Red -Operation mode: LCD display, stepper motor) Package Includes: 1x Water Level Gauge) 1x Wiring harness 1x Installation Instruction 100TECH Fule Sending Unit is the Direct Replacement for the Swingarm Sender for Better Durability and Reliability. 100TECH Fuel gauges allows the user to remotely monitor the liquid level in the tank. These level gauges will work with any level sender with the corresponding resistive output 240-33ohms. Specification of Fuel Tank Sending Unit Length: 8" Resolution Range: 21mm Mounting Methods: Standard SAE 5 hole pattern. Material:Body: SUS 316 Stainless Steel. Liquid Level Sender with American standard output (240 ohms at empty, 33 ohms at full) Voltage output available upon request. Current output available upon request. Customized output curve available upon request. Operational Temperature: -40°F ~ +85°F (-40°C ~ +85°C). Additional Information : Sending Unit Installation Guide Note: Please kindly pay attention to the product description, especially the resolution and length (the length of sender should be 1" less than the depth of the tank if tank is plastic and 0.5" less than the depth of the tank if tank is metal) before placing the order.

100TECH Fuel Gauge Body Material IP67 waterproof and Dustproof grade 316 Stainless Steel Bezel Signal 240 to 33ohm Indicating Range Empty to Full, Working voltage 9 to 32V

［GOOD Readability, Great Visual Contrast on Gauge Face.］ The Red Backlighting is not too Bright or Dim, Looks Really Good during the Day but Even Better at Night lit up.

［Easy to Mount, Convenient to Wire with the Plug ］Mounting size 2 1/16 inch , or 52mm The Instructions is Easy to Follow.

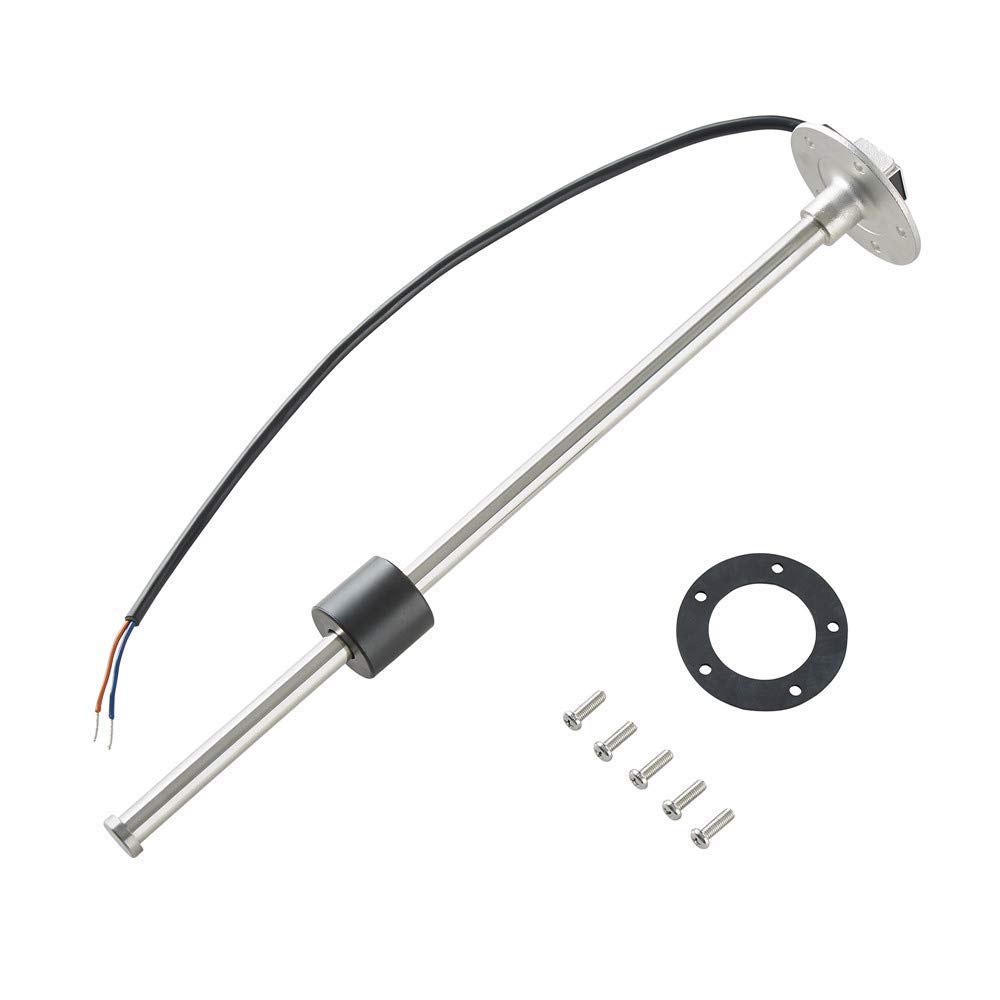

100TECH Fule Level Sensor is the Direct replacement for Swingarm Sender. The advantage of doughnut float design type level sender over thick-film swim arm type level sender is the reed switch's durability and reliability. Additionally, No Moving Parts to Break. No Adjustment Needed for Tank.SAE 5 Hole Mounting Pattern, Heavy Duty 316 Stainless Steel Signal Output 240-33 ohms.Wide Application It Can Support Water/Fuel Level Gauge and for Boat or Auto.

Takes about 15 Minutes to Install Both of Them, You Will know How Much Liquid Left in the Tank.
